Graphics

VPR includes easy-to-use graphics for visualizing both the targetted FPGA architecture, and the circuit VPR has implemented on the architecture.

https://www.verilogtorouting.org/img/des90_routing_util.gif

Enabling Graphics

Compiling with Graphics Support

The build system will attempt to build VPR with graphics support by default.

If all the required libraries are found the build system will report:

-- EZGL: graphics enabled

If the required libraries are not found cmake will report:

-- EZGL: graphics disabled

and list the missing libraries:

-- EZGL: Failed to find required X11 library (on debian/ubuntu try 'sudo apt-get install libx11-dev' to install)
-- EZGL: Failed to find required Xft library (on debian/ubuntu try 'sudo apt-get install libxft-dev' to install)
-- EZGL: Failed to find required fontconfig library (on debian/ubuntu try 'sudo apt-get install fontconfig' to install)
-- EZGL: Failed to find required cairo library (on debian/ubuntu try 'sudo apt-get install libcairo2-dev' to install)

Enabling Graphics at Run-time

When running VPR provide vpr --disp on to enable graphics.

Saving Graphics at Run-time

When running VPR provide vpr --save_graphics on to save an image of the final placement and the final routing created by vpr to pdf files on disk. The files are named vpr_placement.pdf and vpr_routing.pdf.

A graphical window will now pop up when you run VPR.

Visualizing Placement

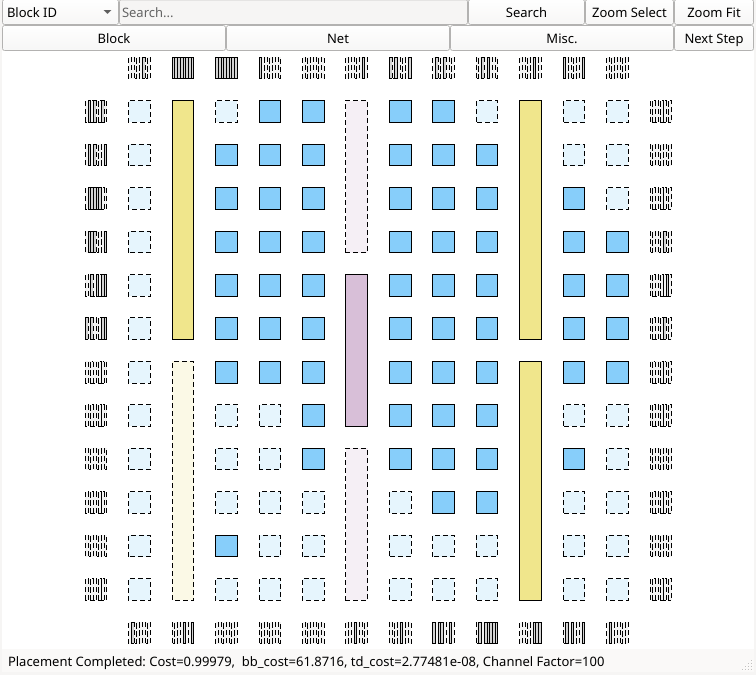

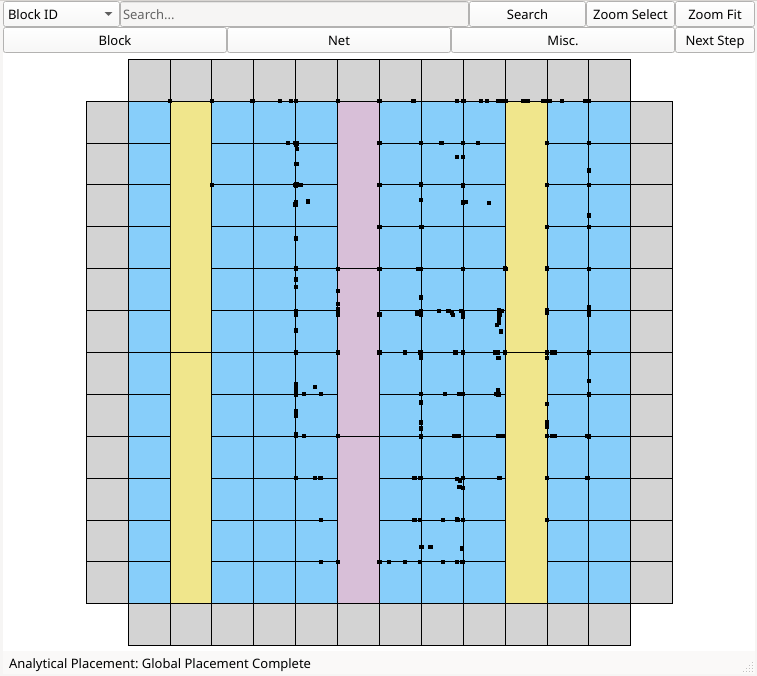

By default VPR’s graphics displays the FPGA floorplan (block grid) and current placement.

../../_images/Overall_view.png

Fig. 37 FPGA floorplan (block grid)

If the Placement Macros drop down is set, any placement macros (e.g. carry chains, which require specific relative placements between some blocks) will be highlighted.

https://www.verilogtorouting.org/img/neuron_placement_macros.gif

Fig. 38 Placement with macros (carry chains) highlighted

Visualizing Netlist Connectivity

The Toggle Nets drop-down list under the Net Settings tab toggles the nets in the circuit to be visible/invisible. Options include Cluster Nets and Primitive Nets.

../../_images/Net_Settings.png

Fig. 39 Toggle Nets drop-down under Net Settings tab

When a placement is being displayed, routing information is not yet known so nets are simply drawn as a “star;” that is, a straight line is drawn from the net source to each of its sinks. Click on any clb in the display, and it will be highlighted in green, while its fanin and fanout are highlighted in blue and red, respectively. Once a circuit has been routed the true path of each net will be shown.

https://www.verilogtorouting.org/img/des90_nets.gif

Fig. 40 Logical net connectivity during placement

If the nets routing are shown, click on a clb or pad to highlight its fanins and fanouts, or click on a pin or channel wire to highlight a whole net in magenta. Multiple nets can be highlighted by pressing ctrl + mouse click.

Visualizing the Critical Path

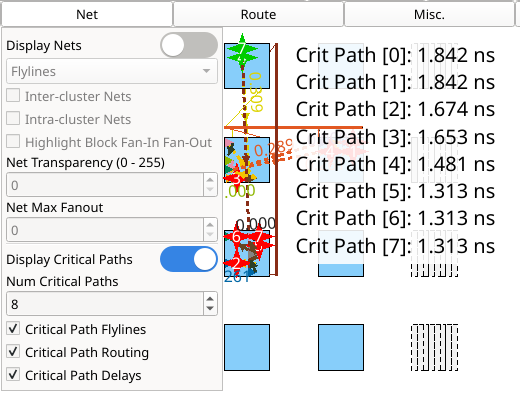

During placement and routing you can click on the Crit. Path drop-down menu under the Misc. tab to visualize the critical path. Each stage between primitive pins is shown in a different colour.

../../_images/crit_path.png

Fig. 41 Crit. Path drop-down list under the Misc. tab

The Crit. Path drop-down will toggle through the various visualizations:

  • During placement the critical path is shown only as flylines.

  • During routing the critical path can be shown as both flylines and routed net connections.

https://www.verilogtorouting.org/img/des90_cpd.gif

Fig. 42 Critical Path flylines during placement and routing

Visualizing Routing Architecture

When a routing is on screen, the Routing Options tab provides various options to gain more visual information.

../../_images/Routing_Options.png

Fig. 43 Routing Options

Clicking on Toggle RR lets you to choose between various views of the routing resources available in the FPGA.

https://github.com/verilog-to-routing/verilog-to-routing.github.io/raw/master/img/routing_arch.gif

Fig. 44 Routing Architecture Views

The routing resource view can be very useful in ensuring that you have correctly described your FPGA in the architecture description file – if you see switches where they shouldn’t be or pins on the wrong side of a clb, your architecture description needs to be revised.

Wiring segments are drawn in black, input pins are drawn in sky blue, and output pins are drawn in pink. Sinks are drawn in dark slate blue, and sources in plum. Direct connections between output and input pins are shown in medium purple. Connections from wiring segments to input pins are shown in sky blue, connections from output pins to wiring segments are shown in pink, and connections between wiring segments are shown in green. The points at which wiring segments connect to clb pins (connection box switches) are marked with an x.

Switch box connections will have buffers (triangles) or pass transistors (circles) drawn on top of them, depending on the type of switch each connection uses. Clicking on a clb or pad will overlay the routing of all nets connected to that block on top of the drawing of the FPGA routing resources, and will label each of the pins on that block with its pin number. Clicking on a routing resource will highlight it in magenta, and its fanouts will be highlighted in red and fanins in blue. Multiple routing resources can be highlighted by pressing ctrl + mouse click.

Visualizing Routing Congestion

When a routing is shown on-screen, clicking on the Congestion drop-down menu under the Routing Options tab will show a heat map of any overused routing resources (wires or pins). Lighter colours (e.g. yellow) correspond to highly overused resources, while darker colours (e.g. blue) correspond to lower overuse. The overuse range shown at the bottom of the window.

https://www.verilogtorouting.org/img/bitcoin_congestion.gif

Fig. 45 Routing Congestion during placement and routing

Visualizing Routing Utilization

When a routing is shown on-screen, clicking on the Routing Util drop-down menu will show a heat map of routing wire utilization (i.e. fraction of wires used in each channel). Lighter colours (e.g. yellow) correspond to highly utilized channels, while darker colours (e.g. blue) correspond to lower utilization.

https://www.verilogtorouting.org/img/bitcoin_routing_util.gif

Fig. 46 Routing Utilization during placement and routing

Toggle Block Internal

During placement and routing you can adjust the level of block detail you visualize by using the Toggle Block Internal option under the Block Settings tab.

../../_images/Block_Settings.png

Fig. 47 Block Settings

Each block can contain a number of flip flops (ff), look up tables (lut), and other primitives. The higher the number, the deeper into the hierarchy within the cluster level block you see.

https://www.verilogtorouting.org/img/ToggleBlockInternal.gif

Fig. 48 Visualizing Block Internals

View Menu

../../_images/view_menu.png

Fig. 49 Items under view menu

The view menu is displayed when vpr is targeting a stacked multi-die architecture (more than 1 layer). Layers are drawn in ascending order for many drawing features (e.g. blocks); that is layer 0 is drawn first, and (if visible), layer 1 is drawn on top of it etc. The visibility and transparency of a layer can be changed, which will affect blocks, nets, routing, and critical path. Cross-layer connections refer to connections that are in different layers.

Button Description Table

Buttons

Stages

Functionalities

Detailed Descriptions

Blk Internal

Placement/Routing

Controls depth of sub-blocks shown

Click multiple times to show more details; Click to reset when reached maximum level of detail

Toggle Block Internal

Placement/Routing

Adjusts the level of visualized block detail

Click multiple times to go deeper into the hierarchy within the cluster level block

Blk Pin Util

Placement/Routing

Visualizes block pin utilization

Click multiple times to visualize all block pin utilization, input block pin utilization, or output block pin utilization

Cong. Cost

Routing

Visualizes the congestion costs of routing resouces

Congestion

Routing

Visualizes a heat map of overused routing resources

Crit. Path

Placement/Routing

Visualizes the critical path of the circuit

Draw Partitions

Placement/Routing

Visualizes placement constraints

Place Macros

Placement/Routing

Visualizes placement macros

Route BB

Routing

Visualizes net bounding boxes one by one

Click multiple times to sequence through the net being shown

Router Cost

Routing

Visualizes the router costs of different routing resources

Routing Util

Routing

Visualizes routing channel utilization with colors indicating the fraction of wires used within a channel

Toggle Nets

Placement/Routing

Visualizes the nets in the circuit

Click multiple times to set the nets to be visible / invisible

Toggle RR

Placement/Routing

Visualizes different views of the routing resources

Click multiple times to switch between routing resources available in the FPGA

Manual Moves

The manual moves feature allows the user to specify the next move in placement. If the move is legal, blocks are swapped and the new move is shown on the architecture.

../../_images/manual_move.png

Fig. 50 Misc. Tab

To enable the feature, activate the Manual Move toggle button under the Misc. tab and press Done. Alternatively, the user can activate the Manual Move toggle button and click on the block to be moved.

https://www.verilogtorouting.org/img/draw_manual_moves_window.png

On the manual move window, the user can specify the Block ID/Block name of the block to move and the To location, with the x position, y position and subtile position. For the manual move to be valid:

  • The To location requested by the user should be within the grid’s dimensions.

  • The block to be moved is found, valid and not fixed.

  • The blocks to be swapped are compatible.

  • The location choosen by the user is different from the block’s current location.

If the manual move is legal, the cost summary window will display the delta cost, delta timing, delta bounding box cost and the placer’s annealing decision that would result from this move.

https://www.verilogtorouting.org/img/manual_move_cost_dialog.png

The user can Accept or Reject the manual move based on the values provided. If accepted the block’s new location is shown.
